[DEXSeq] prepare_annotation.py: exonic part starts too early!

[syintel87]

When I tried the command below,

"python dexseq_prepare_annotation.py Mt.gtf Mt_dexseq.gtf"

an error occurs, saying that "AssertionError: <GenomicFeature: exonic_part 'Medtr7g090810' at Mt:3458:Mt3.5.1Chr7: 28524762 -> 28523495 (strand '-') > starts too early"

So, would you please give me a tip about how I will be able to fix this error?
Thank you.

[Simon Anders]

Could you grep for 'Medtr7g090810' in you GTF file and post the lines containing the term?

[syintel87]

Could you grep for 'Medtr7g090810' in you GTF file and post the lines containing the term?

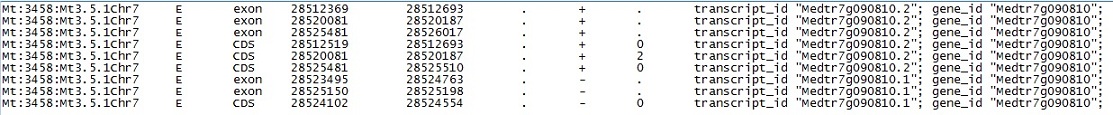

The attached file includes the part of 'Medtr7g090810'.
Thank you for sparing your precious time.

[Simon Anders]

It seems HTSeq got confused because the same gene occurs on both the "+" and the "-_ strand.

[syintel87]

It seems HTSeq got confused because the same gene occurs on both the "+" and the "-_ strand.

1. So, annotation file has to be fixed??

2. When I have just made small changes on the "dexseq_prepare_annotation.py", it worked.

exons = HTSeq.GenomicArrayOfSets( "auto", stranded=True )
for f in HTSeq.GFF_Reader( gtf_file ):
if f.type != "exon":
continue
f.attr['transcript_id'] = f.attr['transcript_id'].replace( ":", "_" )
exons[f.iv] += ( f.attr['transcript_id'], f.attr['transcript_id'] )

But, seeing the original gtf file, since there are both exon and CDS, I am not sure whether this code is okay for my gtf file or not.

3. I have another gtf file. For this, I also made a small change. And it worked.

exons = HTSeq.GenomicArrayOfSets( "auto", stranded=True )
for f in HTSeq.GFF_Reader( gtf_file ):
if f.type != "CDS":
continue
f.attr['transcript_id'] = f.attr['transcript_id'].replace( ":", "_" )
CDS[f.iv] += ( f.attr['transcript_id'], f.attr['transcript_id'] )

But, I am not sure whether this code is okay or not.

4. Do you think the codes that I have modified would be okay?
The attached file is about original gtf and dexseq_prepare_annotation.py and output gtf.

Thank you very much!

[syintel87]

It seems HTSeq got confused because the same gene occurs on both the "+" and the "-_ strand.

This is the attachment.

[Simon Anders]

No, yopu cannot change from gene ID to transcript ID, because there may be many genes with several overlapping transcripts, and they won't be handled correctly anymore.

You really should fix your GTF file: Wherever the same gene ID is used for features on different strands, add something to the gene ID. If this is complicated, just add a "+" or "-" to all gene IDs.

BTW, dexseq_prepare only looks at "exon" lines and ignored "CDS" lines

[syintel87]

No, yopu cannot change from gene ID to transcript ID, because there may be many genes with several overlapping transcripts, and they won't be handled correctly anymore.

You really should fix your GTF file: Wherever the same gene ID is used for features on different strands, add something to the gene ID. If this is complicated, just add a "+" or "-" to all gene IDs.

BTW, dexseq_prepare only looks at "exon" lines and ignored "CDS" lines

1.
So, you mean I will have to replace each +/- into + ?
(Alternatively, replace each +/- into -).

2.
In my Mhapla.gtf file, it has only exon. So do I need to fix my gtf file by replaceing CDS with exon?

[Simon Anders]

1. No, change the gene ID from, say, "Medtr7g090810" to "Medtr7g090810+" and "Medtr7g090810-", depending on strand. This is assuming that you know a scripting language. I wouldn't want to do that manually.

Where did you get this strange GTF file from, anyway? Having the same gene name on both strands is a bug.

2. No, why?

[syintel87]

1. No, change the gene ID from, say, "Medtr7g090810" to "Medtr7g090810+" and "Medtr7g090810-", depending on strand. This is assuming that you know a scripting language. I wouldn't want to do that manually.

Where did you get this strange GTF file from, anyway? Having the same gene name on both strands is a bug.

2. No, why?

1. Thank you. I'll try that. I obtained these gtf files from a member of my project group.

2. If Mhapla.gtf only has CDS but dexseq_prepare.py only looks at "exon" lines and ignored "CDS" lines, the output might have no line at all, I guess.

[Simon Anders]

2. Sure, if it's this way round, you need to change the CDS lines to exon lines.

[arkanion]

1. No, change the gene ID from, say, "Medtr7g090810" to "Medtr7g090810+" and "Medtr7g090810-", depending on strand. This is assuming that you know a scripting language. I wouldn't want to do that manually.

Where did you get this strange GTF file from, anyway? Having the same gene name on both strands is a bug.

2. No, why?

I have the same problem. If you search UCSC Genome Browser for the gene for ex; HIST2H3C, you will see 2 genes appearing, one on + and on one - strand. dexseq cannot deal with this, but this situation actually happens in reality for those who use gtf file downloaded from UCSC track.
