no "combined/ "subdirectory after isoform level clustering by using pbtranscript-tofu

[lingling huang]

"tofu_wrap.py" can divides input into different size bins, runs clustering on the individual bins and combines them later.The question is that there is no 'combined/' subdirectory in tofu_wrap output result.So,i can't get final output files i want to work with.
The command i used is below:
tofu_wrap.py --nfl_fa isoseq_nfl.fasta --ccs_fofn reads_of_insert.fofn --bas_fofn input.fofn -d clusterOut --quiver --gmap_db /zs32/data-analysis /liucy_group /llhuang/Reflib/gmapdb --gmap_name hg19 isoseq_flnc.fasta final.consensus.fa Because of my sever is high-powered single-node computer, I can't install SGE successfully and therefore don't select parameter '--use_sge'. I don't know whether this is the cause of the problem. By the way, I've already tried to add '--bin_manual' back in my command following Bowhan's advice(thank you),but it still only have no 'combined/' subdirectory in output files. There are "
0to1kb/
1to2kb/
2to3kb/
3to4kb/
4to5kb/
fasta_fofn_files/" in the directory clusterOut.
Moreover, what should i do next if i run "tofu_wrap.py" successfully. I want to obtain the difference of transcripts from the third sequencing data between human and mouse.
Any advice will be appreciated, thank you in advance!

[bowhan]

can you please paste the log? and the content of the output directory (the output of `tree` command for example).

[lingling huang]

can you please paste the log? and the content of the output directory (the output of `tree` command for example).

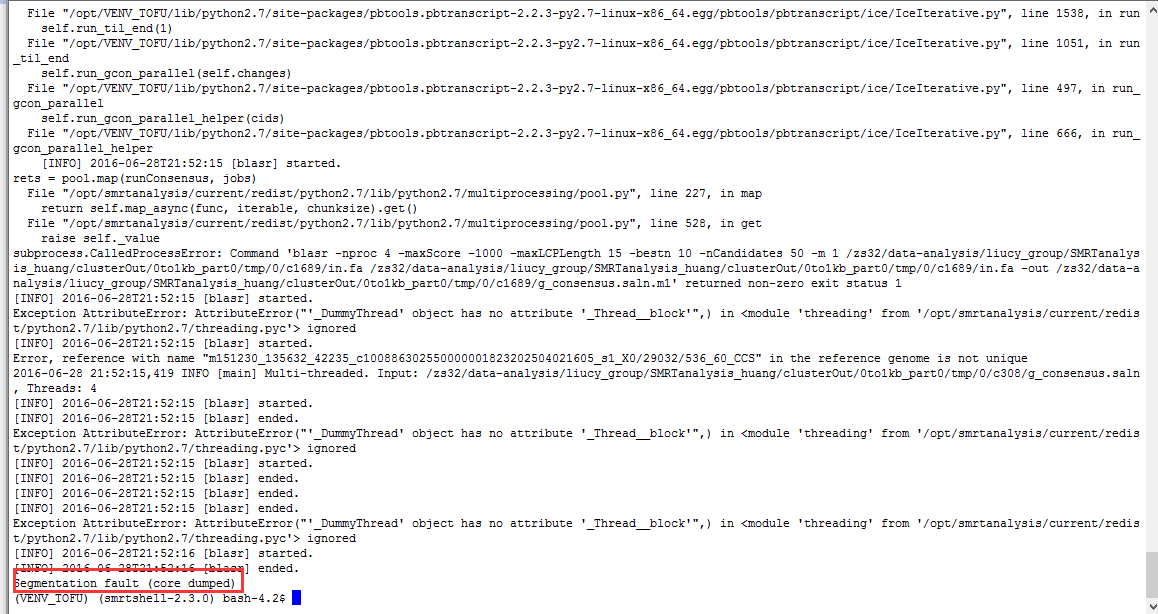

I have tried so many times, and it always presented the following error message:"Segmentation fault (core dumped)". There is no log file .
BUG:

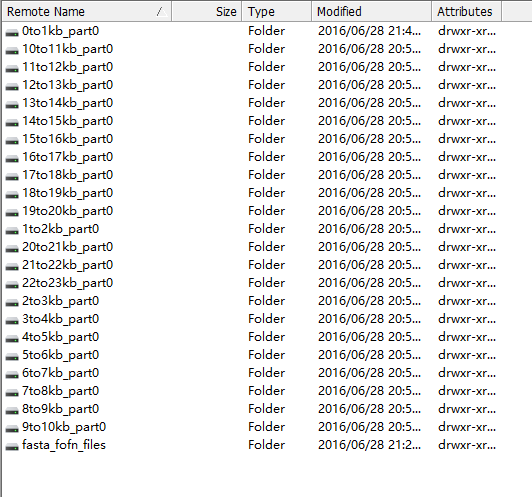

"clusterOut "

all files:

[bowhan]

I have tried so many times, and it always presented the following error message:"Segmentation fault (core dumped)". There is no log file .
BUG:
[ATTACH]4392[/ATTACH]
"clusterOut "
[ATTACH]4390[/ATTACH]
all files:
[ATTACH]4391[/ATTACH]

The job failed because the system call on the `blasr` command failed.
It actually gave an error message complaining that "m151230.../29032/536_60_CCS" is not unique. This is weird if you didn't intervene with the Iso-Seq runs.

Can you please check the # of appearance of this header in your input `isoseq_flnc.fa` file? perhaps with

grep '/29032/536_60_CCS' isoseq_flnc.fasta

And see how many times it has appeared.

Nonetheless, I am not sure if it has anything to do with the segmentation fault, which is usually caused by memory issue. But let's see if fixing the duplicate fasta entries can make your issue go away.

[lingling huang]

two times it has appeared.

[bowhan]

two times it has appeared.

can you please check how many of them are duplicated? perhaps with

awk '/>/{++a[$1]}END{for(b in a) if(a[b]>1) printf "%s\t%d\n", b, a[b]}'  isoseq_flnc.fa

Thanks

[lingling huang]

can you please check how many of them are duplicated? perhaps with

awk '/>/{++a[$1]}END{for(b in a) if(a[b]>1) printf "%s\t%d\n", b, a[b]}'  isoseq_flnc.fa

Thanks

I don't understand the results

[bowhan]

I don't understand the results
[ATTACH]4394[/ATTACH]

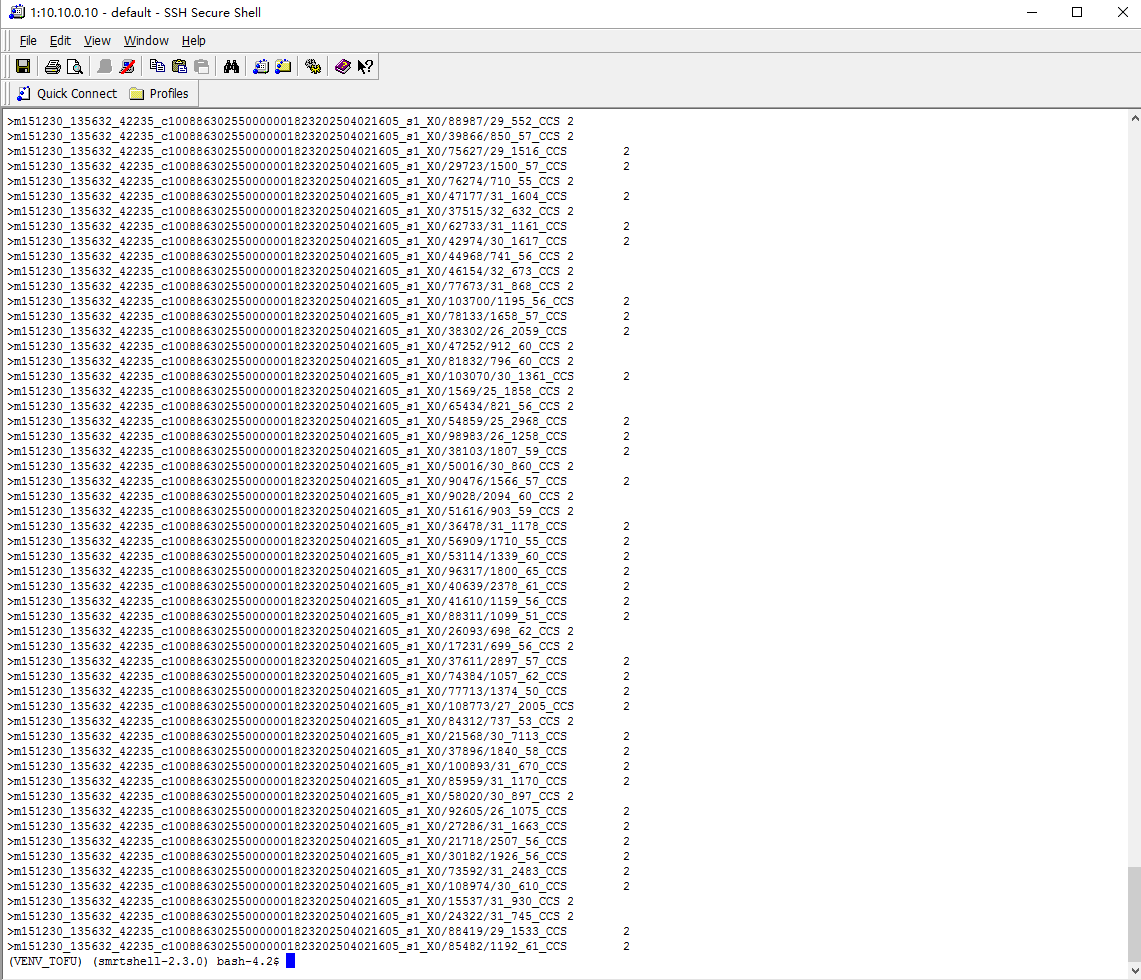

The awk command parses the input file line by line, counting how many times each header appears. At last, it prints out all the headers (with their times of appearances) if it appears more than once.

Looks like all of your sequences are duplicated.

Can you please check your `input.fofn` file (the one you fed into `ConsensusTools.sh CircularConsensus`) to see if each line (which is a path to a `bax.h5` file) is unique? Or you have each file appearing twice.

[lingling huang]

The awk command parses the input file line by line, counting how many times each header appears. At last, it prints out all the headers (with their times of appearances) if it appears more than once.

Looks like all of your sequences are duplicated.

Can you please check your `input.fofn` file (the one you fed into `ConsensusTools.sh CircularConsensus`) to see if each line (which is a path to a `bax.h5` file) is unique? Or you have each file appearing twice.

each line in my input.fofn file seems to be unique.

[bowhan]

each line in my input.fofn file seems to be unique.
[ATTACH]4396[/ATTACH]

You seems to have one `bax.h5` missing and one `bas.h5` there. Can you please fix that and try again?
You should already see the duplication after `CircularConsensus` run (no need to run pbtranscript and tofu)

[lingling huang]

You seems to have one `bax.h5` missing and one `bas.h5` there. Can you please fix that and try again?
You should already see the duplication after `CircularConsensus` run (no need to run pbtranscript and tofu)

I'll try it.Thank you so much. You are a great help to me!

[lingling huang]

You seems to have one `bax.h5` missing and one `bas.h5` there. Can you please fix that and try again?
You should already see the duplication after `CircularConsensus` run (no need to run pbtranscript and tofu)

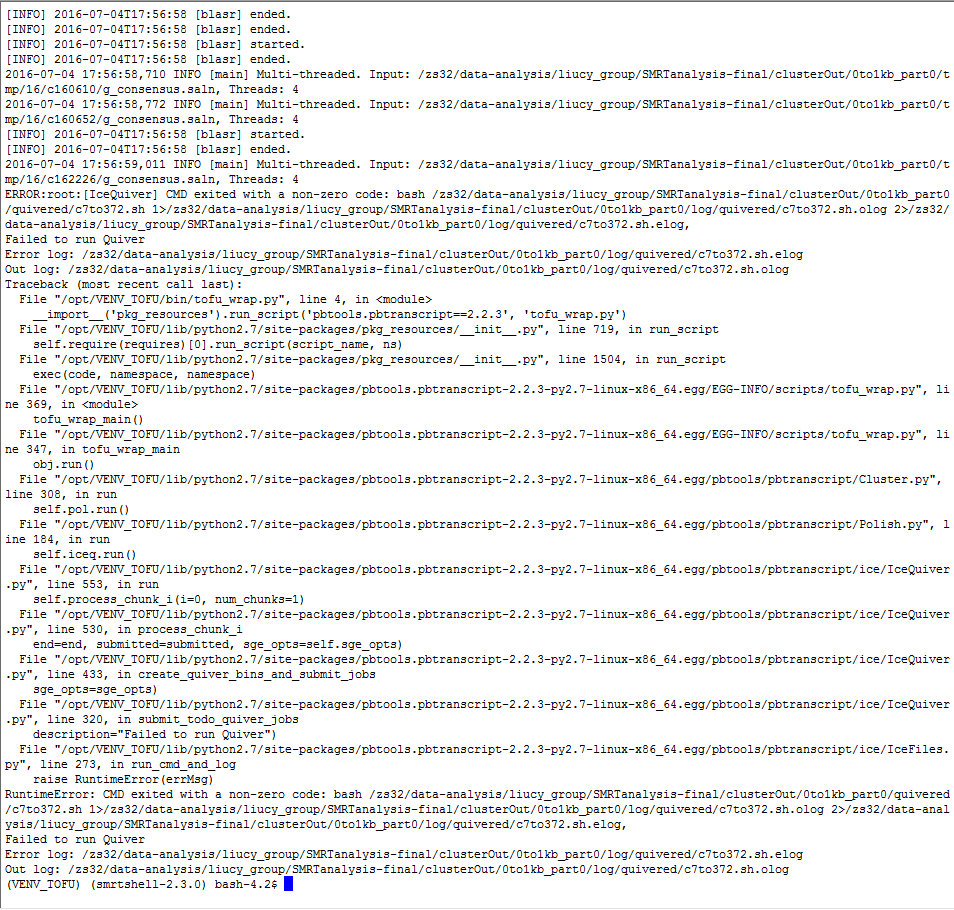

Hi,bowhan, Sorry for disturbing you again,I have tried what you told,I fixed my input.fofn file and each line is unique. However,when running tofu_wrap.py , it appears an error again:


log files:
c7to372.sh.elog and c7to372.sh.olog

[bowhan]

Hi,bowhan, Sorry for disturbing you again,I have tried what you told,I fixed my input.fofn file and each line is unique. However,when running tofu_wrap.py , it appears an error again:
[ATTACH]4398[/ATTACH]

log files:
c7to372.sh.elog and c7to372.sh.olog
[ATTACH]4399[/ATTACH] [ATTACH]4400[/ATTACH]

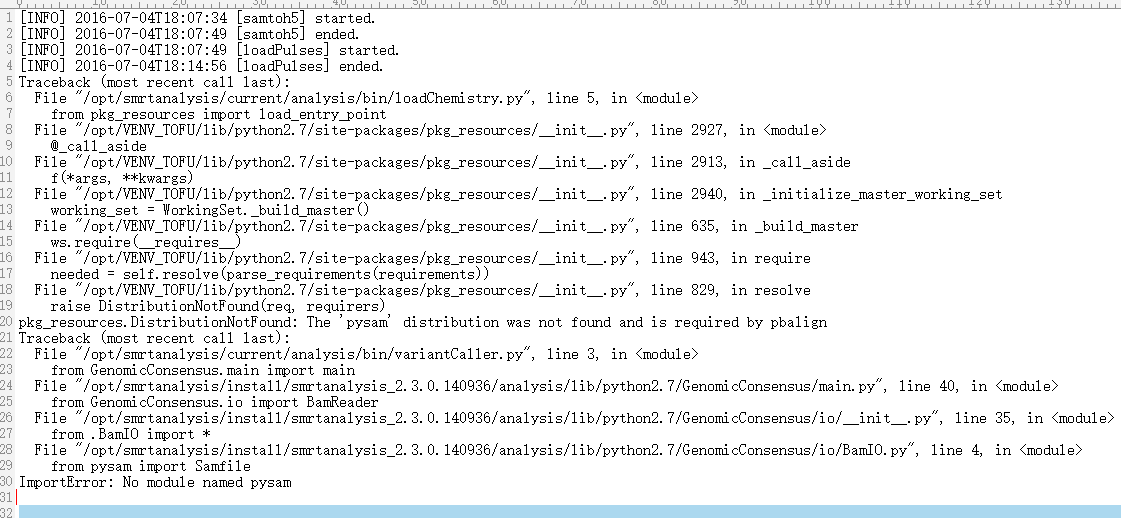

It clearly had a different error now, which said that you didn't have pysam.
Were you following the instruction here to install tofu? It asks you to install pysam with `pip install pysam`. If not, please follow the instructions to install it. Make sure you do it under smrtshell and virtualenv.

[lingling huang]

It clearly had a different error now, which said that you didn't have pysam.
Were you following the instruction here to install tofu? It asks you to install pysam with `pip install pysam`. If not, please follow the instructions to install it. Make sure you do it under smrtshell and virtualenv.

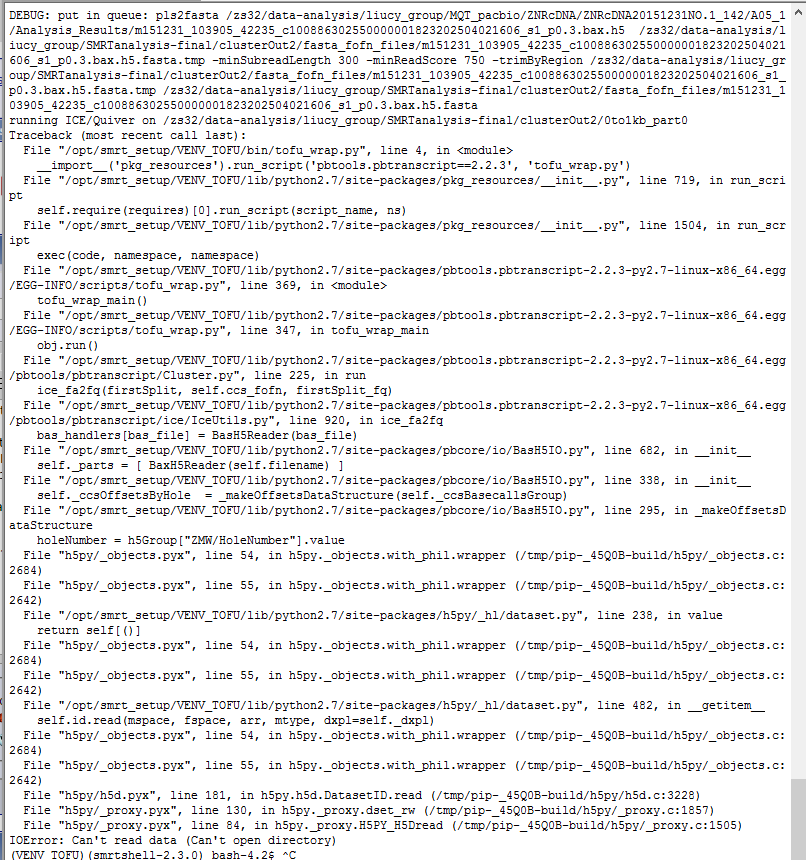

HI,bowhan, how is it going? I'm going out of my mind! I came across a new problem at below.

[Magdoll]

Not sure if this problem was solved, but I almost wonder if some of the .bax.h5 files were actually missing (not just missing in input.fofn, but that they don't actually exist). This has occasionally happened before in file transfers.

If you are still experiencing issue, try checking the input.fofn files all exist.

You can do so by downloading this simple script:

https://github.com/Magdoll/PacBio-generic/blob/master/file_exists.py

Then do
`python file_exists.py input.fofn`

If all files listed exist, it would say check passed. Otherwise it will tell you which ones are missing. Remove the missing .bax.h5 files from input.fofn.
